Tower Pro Micro Servo Motor MG90S With Metal Gear
Original price was: ₹300.₹149Current price is: ₹149.
Metal Gear Construction – Strong, durable gears for long life
High Torque Output – Handles heavier loads than plastic-gear servos
Micro Size (9g Class) – Compact and lightweight

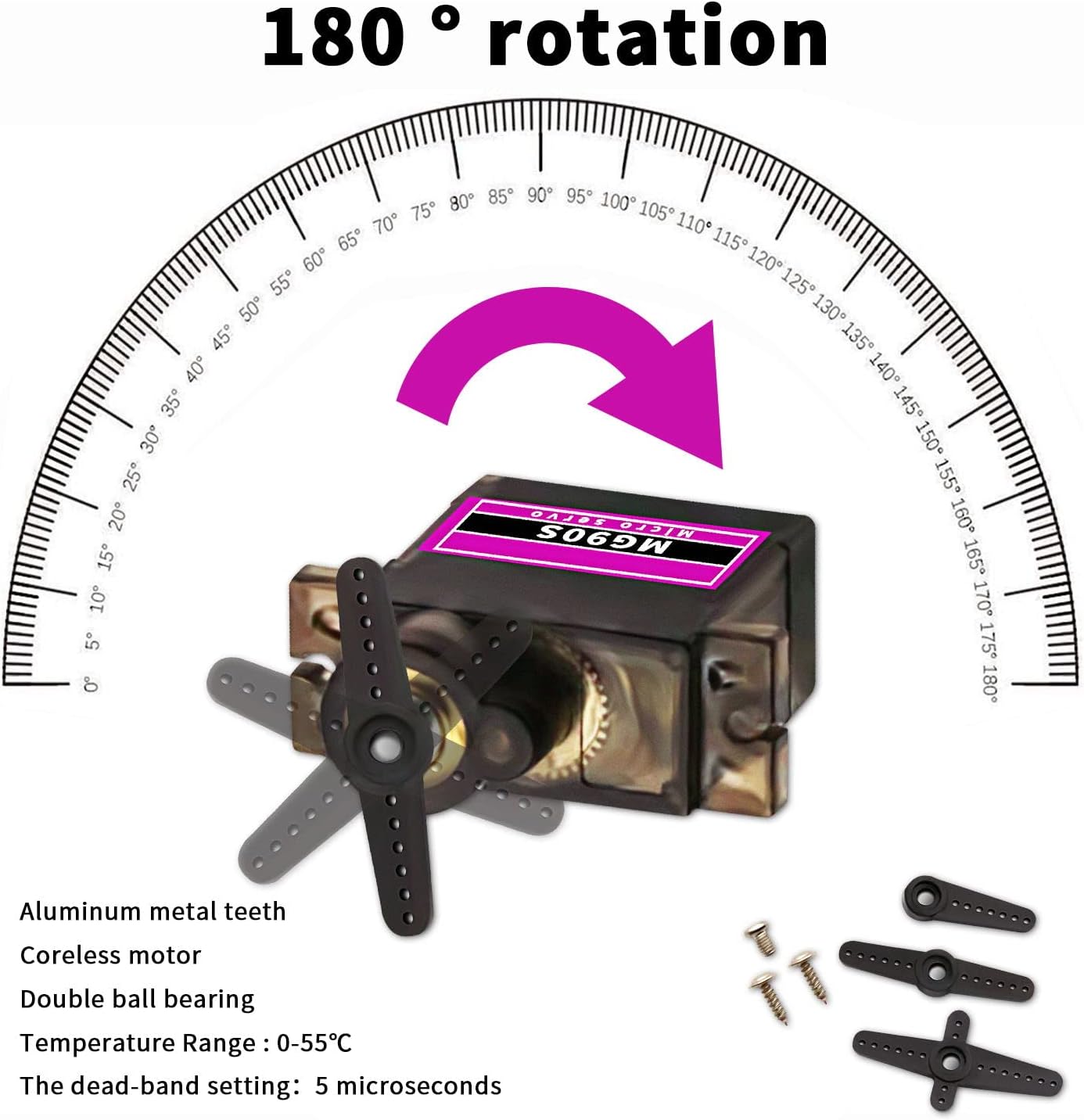

180° Rotation – Accurate positional control
PWM Control – Compatible with Arduino, Raspberry Pi, ESP32, etc.
Fast Response Time – Smooth and quick movement
Low Power Operation – Works with standard 4.8V–6V supplies
Description
Product Overview

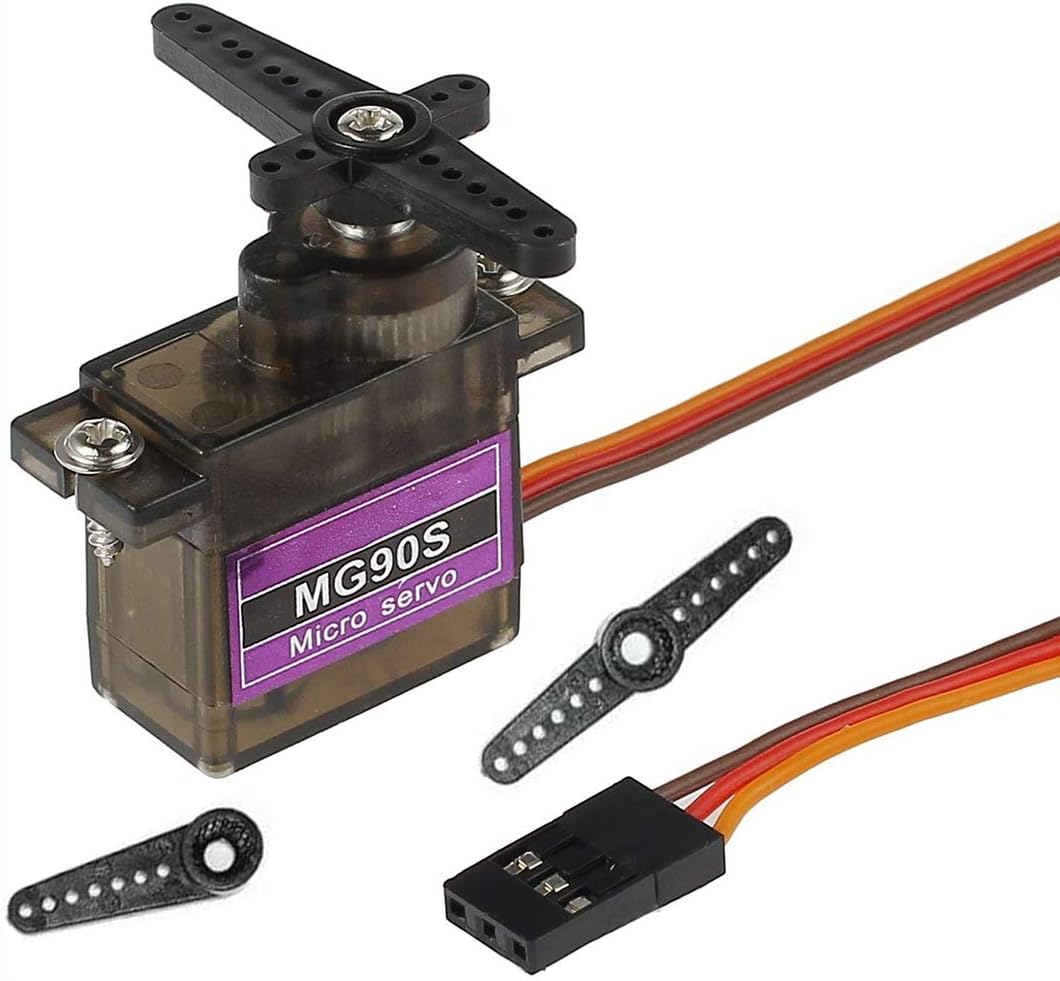

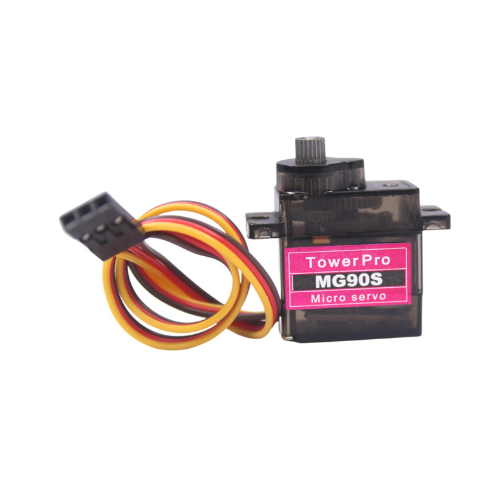

The Tower Pro MG90S Micro Servo Motor is a high-torque, metal-gear servo designed for robotics, RC models, and precision electronics projects. Compared to plastic-gear servos, the MG90S offers greater durability, higher torque, and better reliability under load — making it ideal for demanding applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MG90S |
| Brand | Tower Pro |
| Gear Type | Metal Gear |
| Operating Voltage | 4.8V – 6V DC |
| Stall Torque | 2.0 – 2.2 kg·cm @ 4.8V |
| Speed | 0.10 sec / 60° @ 4.8V |
| Rotation Angle | 0° – 180° |
| Control Signal | PWM (50Hz) |
| Weight | ~13 g |
| Bearing Type | Bushing |
| Connector | 3-Pin (Signal, VCC, GND) |
| Cable Length | ~25 cm |
